Electronics Lab
The electronics lab is captained by Stan Okrasinski
Discord: @sokrasins
Email: stan@makeroanoke.org
General Lab Safety
- Members must have completed MAKE Roanoke's new member orientation before using the electronics lab.
- No food or drinks are permitted in the 3D printing, laser, or electronics labs.
- Don't throw batteries away in the maker space
- Much of the equipment in electronics is considered a “yellow” tool, meaning shop orientation and safety training must be completed prior to use. The equipment is labeled to indicate it's level. If a tool is unlabled, it is considered green.
If you'd like to review the orientation material, see the electronics orientation guide
Equipment
The Electronics shop offers equipment in three main categories:
- Soldering tools
- Test and measure equipment
- Components and project materials
Soldering
All soldering tools are yellow tools: electronics shop training is required before soldering tool use is permitted. Remember to follow these rules while using any of the soldering tools:
- Use any available fume extraction. This is important both to protect yourself and to reduce the risk for other members.
- You must either wear gloves or wash your hands when you’re finished soldering
- Don’t leave the soldering tools on if you leave the area
- The tool should not be laid on the table when not in use. It should only either be in your hand or in the appropriate stand.
- For soldering irons specifically: leave some solder on the tip of the iron when you’re done

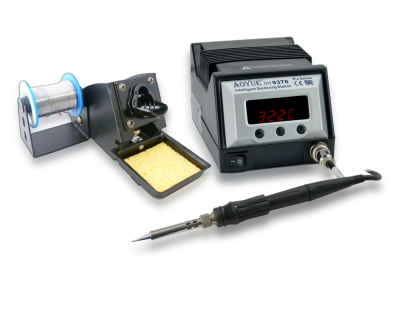

Aoyue 9378 Soldering Iron
- Tool Level: Yellow
- Status: Working
- Manual: aoyue-9378-manual.pdf

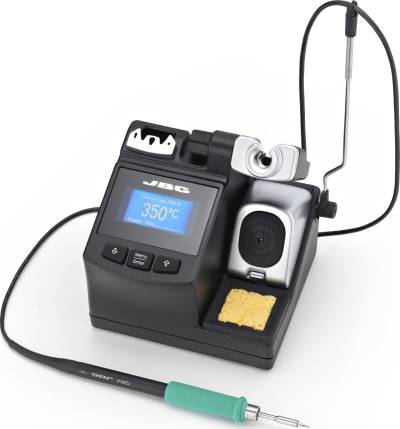

JBC CD-1E Soldering Iron
- Tool Level: Yellow
- Status: Working
- Manual: jbc-cd-1e-manual.pdf

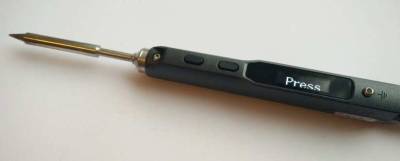

Miniware TS100/101 Soldering Irons
- Tool Level: Yellow
- Status: Working

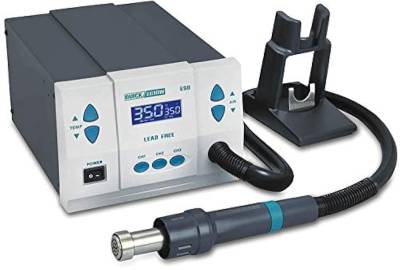

Quick 861DW Hot Air Station
- Tool Level: Yellow
- Status: Working
- Manual: quick-861dw-manual.pdf
Test and Measure

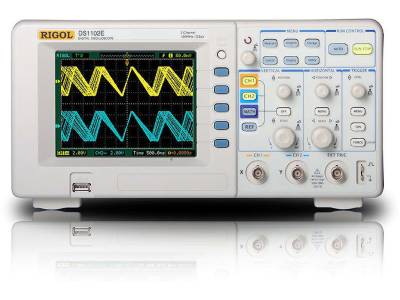

Rigol DS1102E Oscilloscope
- Tool Level: Yellow
- Status: Known Issues
- Manual: rigol-ds1102e-manual.pdf
Safety Considerations:
When using an oscilloscope, ground on the probe must ONLY ever be connected to ground in your circuit. Failing to follow this rule will damage both the oscilloscope and the device you are testing. For more details on oscilloscope safety, see [EEVblog #279 - How NOT To Blow Up Your Oscilloscope!](https://www.youtube.com/watch?v=xaELqAo4kkQ)
Issues:
- Channel 1 faulty at certain voltage scales
- Horizontal scale control encoder broken

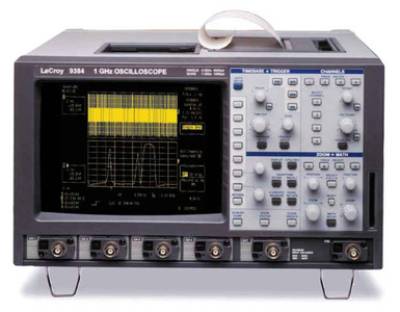

LeCroy 9345M Oscilloscope
- Tool Level: Yellow
- Status: Working
- Manual: lecroy-9345m-manual.pdf
Safety Considerations:
When using an oscilloscope, ground on the probe must ONLY ever be connected to ground in your circuit. Failing to follow this rule will damage both the oscilloscope and the device you are testing. For more details on oscilloscope safety, see this video: [EEVblog #279 - How NOT To Blow Up Your Oscilloscope!](https://www.youtube.com/watch?v=xaELqAo4kkQ)

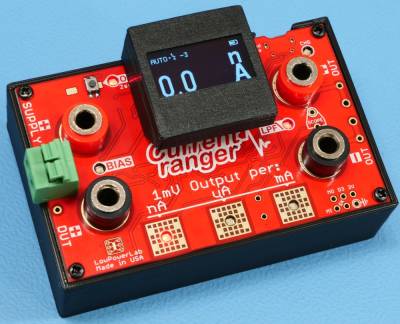

Current Ranger
- Tool Level: Green
- Status: Working
- Documentation: Low Power Lab Current Ranger

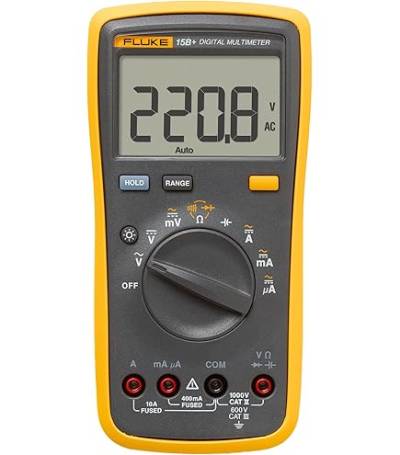

Fluke 17B Multimeter
- Tool Level: Green
- Status: Working
- Manual: fluke-17b_-manual.pdf

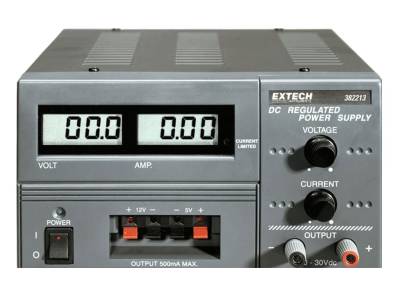

Extech 382213 Power Supply
- Tool Level: Green
- Status: Working
- Manual: extech-382213.pdf
Components/Tools
Coming soon: Parts database and photos of tool drawers
