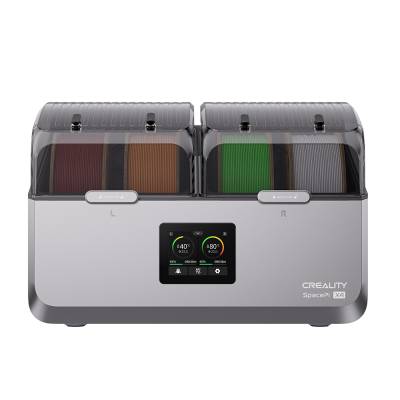

Creality Space Pi X4 Filament Dryer
Dual-chamber filament dryer
The Creality Space Pi Filament Dryer is a compact dual-zone dryer designed to reduce moisture in 3D printing filament. It offers adjustable temperature settings, a timer function, two independent temperature zones, and real-time humidity monitoring. The dual temperature zones make it possible to simultaneously dry dissimilar materials. The Space Pi has a touch screen interface, where users can set the desired temperature and drying time for their filament.
The chambers have exhaust fans which actively remove humidity from the chamber during the dry cycle. Desiccant is still recommended for best results.
Machine Limits
- Maximum temperature: 85°C
- Maximum dry cycle: 48 hours
Material Drying Settings
| Material | Drying Temperature | Drying Time |
|---|---|---|
| PLA | 50°C | 4 to 6 hours |
| PETG | 70°C | 4 to 8 hours |
| TPU | 50°C | 4 to 8 hours |
Documentation
Maintenance Log
- 6/12/2025: New Equipment Service Entry
- Unpacked filament dryer and ran test cycle
